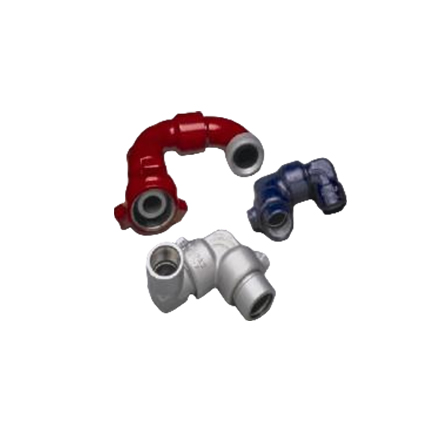

High-Pressure Swivel Joints (30 deg to 90 deg)
High-pressure swivel joints for cementing, fracturing, and well testing flow line connections. 360° rotation with multiple bend configurations (straight, 30°, 45°, 60°, 90°) for flexible rig-up. Forged alloy steel body with hard-faced ball races and nitrided seal journals for long service life under abrasive conditions. Working pressures to 15,000 PSI cold working pressure (CWP). Interchangeable with Fig 1002 and Fig 1502 hammer union end connections. OEM manufacturer with competitive pricing and 3–5 week standard lead time.
Specifications
| Specification | Value |
|---|---|
| Working Pressure | 6,000 – 15,000 PSI CWP |
| Size Range | 2" – 4" |
| Material | AISI 4130 / 4140 Forged Steel |
| Standard | API 6A |
| Bend Angles | Straight, 30°, 45°, 60°, 90° |
| End Connections | Fig 1002 / Fig 1502 Hammer Union |
| Seal Type | Nitrile / HNBR with Nitrided Journals |
| Standard | API 6A |
| Category | Fittings |
